Cooling Method Air-Cooled Type
Type Temperature Controller
Cooling Capacity (W) 430/510
Heating Capacity (W) 1000
Temperature Control Precision (°C) +-0.1
Setting Temperature Range (°C) 20~30
Use Area Temperature (°C) 20 ~ 35 (change in temperature gradient: within 1 ℃/1h)
Use Area Humidity (%RH) 10 ~ 85 (change in temperature gradient: within 5%/1h) (No condensation)
Processed Air Volume (m2/min)(50Hz) 1.8/2.0

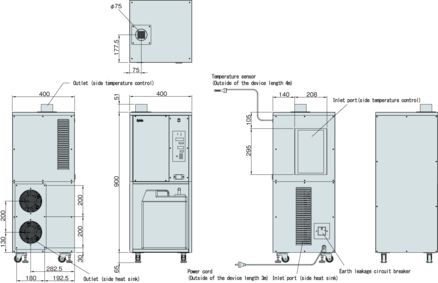

External Dimensions(mm) H965×W400×D400
Volume (kg) 54
Coating Color Ivory (JPMA: Semi-gloss Y22-85B)
Blower Duct Connection Diameter (mm) φ75
Rated Voltage (V) Single-phase AC100
Consumption Current (A) 6.1/5.1(MIN) 14.1/14.6(MAX)
Wattage (W) 460/510(MIN) 1370/1460(MAX)
Drain Discharge Water Connection Diameter (mm) Outer diameter φ16
Coolant R-134a 320g
Exhaust Air Volume (m3/min) 10.0/12.0
Safety Circuit/Main Circuit Earth leakage circuit breaker (15A 15mA)
Safety Circuit/Blower Delay timer (3 minutes)
Safety Circuit/Compressor Overcurrent relay, motor protectors, surge absorbers, low temperature thermostat driving prevention
Safety Circuit/Heater Thermostat to prevent overheating (65°C OFF 55°C ON), warning lamp, thermal fuse (99°C)
Output/Main Unit Malfunction Output -
Output/Temperature Control Top-Bottom Limit Alarm -

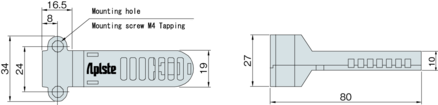

Sensor dimensions

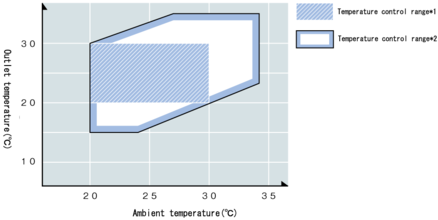

Temperature Control Range Chart

[Range: temperature control *1]
Range showed a correlation between temperature and ambient temperature the unit can be configured.
Temperature control accuracy of this unit (+- 0.5°C) is applied to the set temperature within this range.
[Range: temperature control *2]
Although outside the scope of warranty (+- 0.5°C) temperature control accuracy, range and showed a correlation of temperature and ambient temperature the unit can be configured.
Measurement conditions
AC100V 60Hz (1) single-phase power supply:
Ambient humidity: 40% RH (2)
Blowing air volume: 1.0m / min (3)
Sensor is mounted in the body of the performance of the outlet air outlet body (4)
The body, without mounting the fan duct (5)
