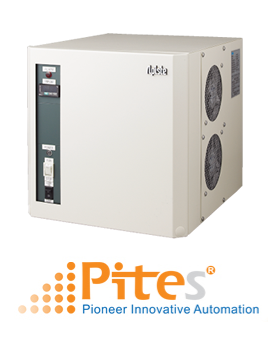

Cooling Method Air-Cooled Type
Type Temperature Controller
Cooling Capacity (W) 230/280
Heating Capacity (W) 600
Temperature Control Precision (°C) +-0.5
Setting Temperature Range (°C) 20~30(When the compressor shut down:20~40)
Use Area Temperature (°C) 20 to 35 (change in temperature gradient: within 1°C/1h)
Use Area Humidity (%RH) 10 to 85 (change in temperature gradient: within 5%/1h) (No condensation)
Processed Air Volume (m2/min)(50Hz) 0.8/1.0
External Dimensions(mm) H350×W350×D400
Volume (kg) 29
Coating Color Ivory (JPMA: Semi-gloss Y22-85B)
Blower Duct Connection Diameter (mm) φ75
Rated Voltage (V) Single-phase AC100
Consumption Current (A) 3.5/3.0(MIN) 8.2/8.0(MAX)
Wattage (W) 280/290(MIN) 820/850(MAX)
Drain Discharge Water Connection Diameter (mm) Outer diameter φ16
Coolant R-134a 120g
Exhaust Air Volume (m3/min) 4.8/5.4
Safety Circuit/Blower Delay timer (3 minutes)
Safety Circuit/Compressor Motor protector
Safety Circuit/Heater Thermostat to prevent overheating (65°C OFF 55°C ON), warning lamp, thermal fuse (99°C)

Cooling and heating capacity is the value in the body of the balloon when RH 25°C / 40% ambient temperature.
The temperature control precision constant temperature and humidity chamber JTMK01 - are based on the method set forth in Section 2 (Japan Testing Machinery Association) how to display performance test methods and performance.
Guarantee the accuracy of the point and one outlet in reading body temperature controller equipped with air conditioners, duct thermal interference due accuracy is not covered under warranty.
In addition, this product is intended to suppress the fluctuation of air temperature, but do not guarantee the absolute value of the temperature.
(For bias correction function is equipped.)
Ambient temperature and humidity.
Some may not be able to also control the temperature within the range set.
Is the value of the processing air volume in the outlet body.
Dimensions above are body dimensions. Mounting flange, protrusions are not included.
Current consumption, power consumption may vary depending on surrounding environment temperature and humidity and conditions of use.
For air-cooled type, there is waste heat from the equipment. (With exhaust chamber as an option)
Ambient environment at low temperatures below ambient temperature of the protective device is used to work, we will automatically shut down the compressor only.
In that case, we can not guarantee the accuracy of the above, please use the ambient temperature in the range of use.
The actual mounting on the check, I hope specification contained in the instruction manual, the precautions.
If you need instruction manual in advance on the design, please contact your nearest sales office.


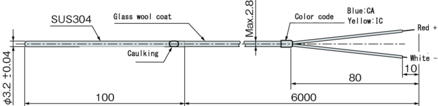

Sensor dimensions

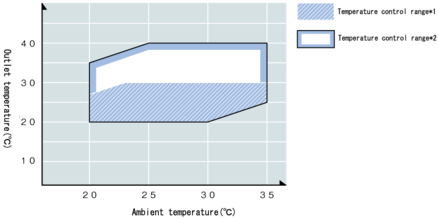

Temperature Control Range Chart

Range: temperature control *1]
Range showed a correlation between temperature and ambient temperature the unit can be configured.
Temperature control accuracy of this unit (+- 0.5°C) is applied to the set temperature within this range.
[Range: temperature control *2]
Although outside the scope of warranty (+- 0.5°C) temperature control accuracy, range and showed a correlation of temperature and ambient temperature the unit can be configured.
Measurement conditions
AC100V 60Hz (1) single-phase power supply:
Ambient humidity: 40% RH (2)
Blowing air volume: 1.0m / min (3)
Sensor is mounted in the body of the performance of the outlet air outlet body (4)
The body, without mounting the fan duct (5)
