Measures the temperatures of the K type of thermocouple by 4CH

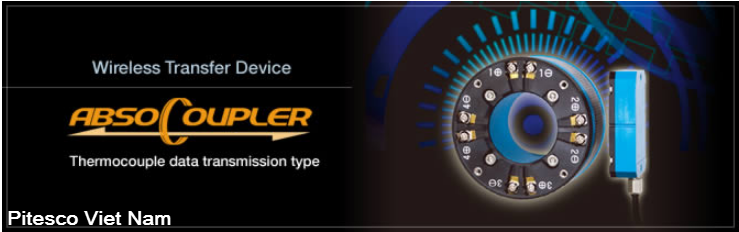

The thermocouple wiring is mounted on the terminal block at the data transmission
head of the moving device, thus it is easy to plug or unplug the thermocouple.
4-CH measurement data is transferred from moving device to fixing device without
contact, and the analogue signals output from the amplifier of the fixing device.
Hollow-shaft design concept
The data transmission head can be directly mounted to the shaft of the heating roll.
Compact design concept
The data transmission head is easy to mount on the equipment
because the data transmission head of the fixing device is put at
near the moving device head. The roll can be replaced without removing
the data transmission head of the data transmission.
The temperature each sensor's CH, the temperature inside of
the moving device, and the operation state of non-contact
communication can be monitored by the amplifier's panel of the fixing device.
In addition, an error state can be detected and output by the contact point.
