Type 2552 Magmeter, 3-2552-21-A-11, 3-2552-21-B-11, 3-2552-22-A-11, 3-2552-22-B-11, 3-2552-33-A-11, 3-2552-33-B-11, 3-2552-34-A-11, 3-2552-34-B-11

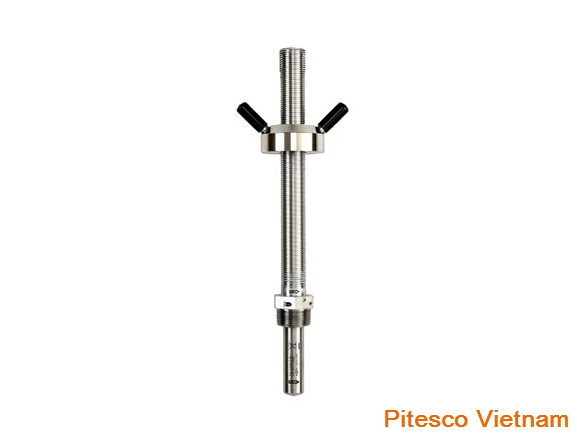

Type 2552 Magmeter Frequency or Digital (S³L) output

The Signet 2552 Metal Magmeter from Georg Fischer features all-stainless steel construction. The PVDF nosepiece and FKM O-rings are the only other wetted materials. The 2552 installs quickly into standard ISO 7- R 1 ¼ or ISO 7- R 1 ½ (1¼ in. or 1½ in. NPT) pipe outlets, and is adjustable to fit pipes from DN50 to DN2550 (2 to 102 inches). Two sensor lengths allow maximum flexibility to accommodate a variety of hardware configurations, including ball valves for hot-tap installations.

When equipped with the frequency output, the 2552 is compatible with any Signet flow instrument, while the Digital (S3L) output enables multi-channel compatibility with the Signet 8900 Multi-Parameter Flow Controller. Select the blind 4 to 20 mA current output to interface directly with dataloggers, PLCs or telemetry systems. Key features include Empty Pipe Detection, LED-assisted troubleshooting, and bi-directional span capability (in 4 to 20 mA models).

The Signet 3-0250 USB to Digital (S3L) Configuration/Diagnostic Tool is available to customise every performance feature in the 2552 so it can be adapted to the user’s application requirements.


Flow:

  • Installs into pipe sizes: 2 to 102 in, DN50 to DN2550
  • Operating range: 0.05 to 10 m/s, 0.15 to 33 ft/s

  • Max Pressure rating: PP 10.3 bar @ 25 °C, 150 psi @ 77 °F
  • Power source: 5 to 26.4 VDC, 15mA max
  • Compatibility: 8900, 9900, 9900-1BC, 9950
