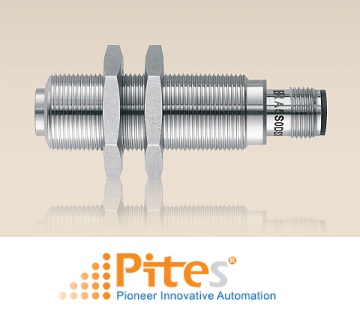

BraunTacho Vietnam, Hall-Effect Sensors Ex nA (intrinsically safe), Bộ cảm biến hiệu ứng tốc độ BraunTacho

A5S1DD0…-n

Sensor A5S1DD0-n for detection of rotational speed in Hazardous Areas Zone 2

• Contact-free, wear-free, maintenance-free
• Unsusceptible versus external magnetic stray fields and machine vibration
• Suitable for all applications where high levels of accuracy and reliability are at a premium
• Frequency range 0 Hz...25 kHz
• Single Channel, the output displays the rotational speed as a single track frequency signal
• TÜV certified for safety level SIL3 / IEC 61508:2010
• TÜV certified for PL e; Cat. 3 / DIN EN ISO 13849-1:2016 + DIN EN ISO 13849-2:2012
• TÜV certified for SILCL3 / IEC 62061:2015
• For installation in Hazardous Areas as non-incendive operating resource
  • ATEX/IECEx certified for Ex nA IIC T4/T6 Gc
  • UL/CSA certified for Class I, Div 2, Groups A, B, C, D
  • EAC certified for Ex nA IIC T4/T6 Gc

A5S1DD3…-n

Sensor A5S1DD3-n for detection of rotational speed and direction of rotation in Hazardous Areas Zone 2

• Contact-free, wear-free, maintenance-free
• Unsusceptible versus external magnetic stray fields and machine vibration
• Suitable for all applications where high levels of accuracy and reliability are at a premium
• Frequency range 0 Hz...25 kHz
• Dual Channel, 1 track = rotational speed as frequency, 1 track = F/R status as binary signal
• TÜV certified for safety level SIL3 / IEC 61508:2010
• TÜV certified for PL e; Cat. 3 / DIN EN ISO 13849-1:2016 + DIN EN ISO 13849-2:2012
• TÜV certified for SILCL3 / IEC 62061:2015
• For installation in Hazardous Areas as non-incendive operating resource
  • ATEX/IECEx certified for Ex nA IIC T4/T6 Gc
  • UL/CSA certified for Class I, Div 2, Groups A, B, C, D
  • EAC certified for Ex nA IIC T4/T6 Gc

A5S1DD4…-n

Sensor A5S1DD4-n for detection of rotational speed and direction of rotation with two phase-shifted speed signals in Hazardous Areas Zone 2

• Contact-free, wear-free, maintenance-free
• Unsusceptible versus external magnetic stray fields and machine vibration
• Suitable for all applications where high levels of accuracy and reliability are at a premium
• Frequency range 0 Hz...25 kHz
• Dual Channel, the output displays the rotational speed as a twin-track frequency signal (phase shifted)
• Suitable for external direction detection with enhanced safety
• TÜV certified for safety level SIL3 / IEC 61508:2010
• TÜV certified for PL e; Cat. 3 / DIN EN ISO 13849-1:2016 + DIN EN ISO 13849-2:2012
• TÜV certified for SILCL3 / IEC 62061:2015
• For installation in Hazardous Areas as non-incendive operating resource
  • ATEX/IECEx certified for Ex nA IIC T4/T6 Gc
  • UL/CSA certified for Class I, Div 2, Groups A, B, C, D
  • EAC certified for Ex nA IIC T4/T6 Gc

A5S1DS0…-n

Sensor A5S1DS0-n for detection of rotational speed in Hazardous Areas Zone 2

• Contact-free, wear-free, maintenance-free
• Unsusceptible versus external magnetic stray fields and machine vibration
• Suitable for all applications where high levels of accuracy and reliability are at a premium
• Frequency range 0 Hz...12 kHz
• Single Channel, the output displays the rotational speed as a single track frequency signal
• TÜV certified for safety level SIL3 / IEC 61508:2010
• TÜV certified for PL e; Cat. 3 / DIN EN ISO 13849-1:2016 + DIN EN ISO 13849-2:2012
• TÜV certified for SILCL3 / IEC 62061:2015
• For installation in Hazardous Areas as non-incendive operating resource
  • ATEX/IECEx certified for Ex nA IIC T4/T6 Gc
  • UL/CSA certified for Class I, Div 2, Groups A, B, C, D
  • EAC certified for Ex nA IIC T4/T6 Gc

A5S1DS3…-n

Sensor A5S1DS3-n for detection of rotational speed and direction of rotation in Hazardous Areas Zone 2

• Contact-free, wear-free, maintenance-free
• Unsusceptible versus external magnetic stray fields and machine vibration
• Suitable for all applications where high levels of accuracy and reliability are at a premium
• Frequency range 0 Hz...12 kHz
• Dual Channel, 1 track = rotational speed as frequency, 1 track = F/R status as binary signal
• TÜV certified for safety level SIL3 / IEC 61508:2010
• TÜV certified for PL e; Cat. 3 / DIN EN ISO 13849-1:2016 + DIN EN ISO 13849-2:2012
• TÜV certified for SILCL3 / IEC 62061:2015
• For installation in Hazardous Areas as non-incendive operating resource
  • ATEX/IECEx certified for Ex nA IIC T4/T6 Gc
  • UL/CSA certified for Class I, Div 2, Groups A, B, C, D
  • EAC certified for Ex nA IIC T4/T6 Gc

A5S1DS4…-n

Sensor A5S1DS4-n for detection of rotational speed and direction of rotation with two phase-shifted speed signals in Hazardous Areas Zone 2

• Contact-free, wear-free, maintenance-free
• Unsusceptible versus external magnetic stray fields and machine vibration
• Suitable for all applications where high levels of accuracy and reliability are at a premium
• Frequency range 0 Hz...12 kHz
• Dual Channel, the output displays the rotational speed as a twin-track frequency signal (phase shifted)
• Suitable for external direction detection with enhanced safety
• TÜV certified for safety level SIL3 / IEC 61508:2010
• TÜV certified for PL e; Cat. 3 / DIN EN ISO 13849-1:2016 + DIN EN ISO 13849-2:2012
• TÜV certified for SILCL3 / IEC 62061:2015
• For installation in Hazardous Areas as non-incendive operating resource
  • ATEX/IECEx certified for Ex nA IIC T4/T6 Gc
  • UL/CSA certified for Class I, Div 2, Groups A, B, C, D
  • EAC certified for Ex nA IIC T4/T6 Gc
